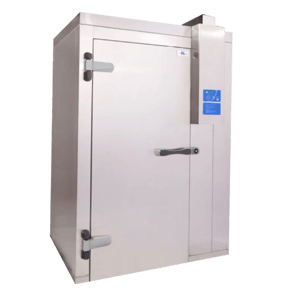

TK26BC-2

50" x 36" x 84" High

Capacity

  • Angle guide rack, up to 26 food pans
  • Universal guide rack, up to 26 food pans and 13 sheet pans
  • Combi oven racks
  • Can accommodate any size rack up to 27" (W) x 29" (D) x 74" (H)

Performance

  • Blast chills up to 220 lb of product from 165°F to 37°F within two hours

Construction

  • 304 stainless steel interior and exterior
  • 4" foamed-in-place DURATHANE 100% urethane tongue-and-groove construction
  • Heated heavy-duty reinforced steel u-channel door frame with adjustable hinges
  • Stand-alone uniframe modular chiller system fully assembled with electrical power and refrigeration components

Refrigeration System

  • R-404A or R-448A refrigerant
  • Can provide proper condensing unit specially designed for blast chilling (sold separately)
  • Can be connected to a central refrigeration rack system designed for medium temperature applications
  • 35,000 BTU/HR (20°F Evap. Temp./110°F Cond. Temp.)

Control System

  • Based on the latest microcontroller technology
  • Standard with one food probe and one air probe
  • Operates in manual or fully automatic mode
  • TK26BC-1: 115VAC, 1Ph, 60Hz, 15 Amps Circuit
  • TK26BC-2: 208VAC, 1Ph, 60Hz, 15 Amps Circuit
